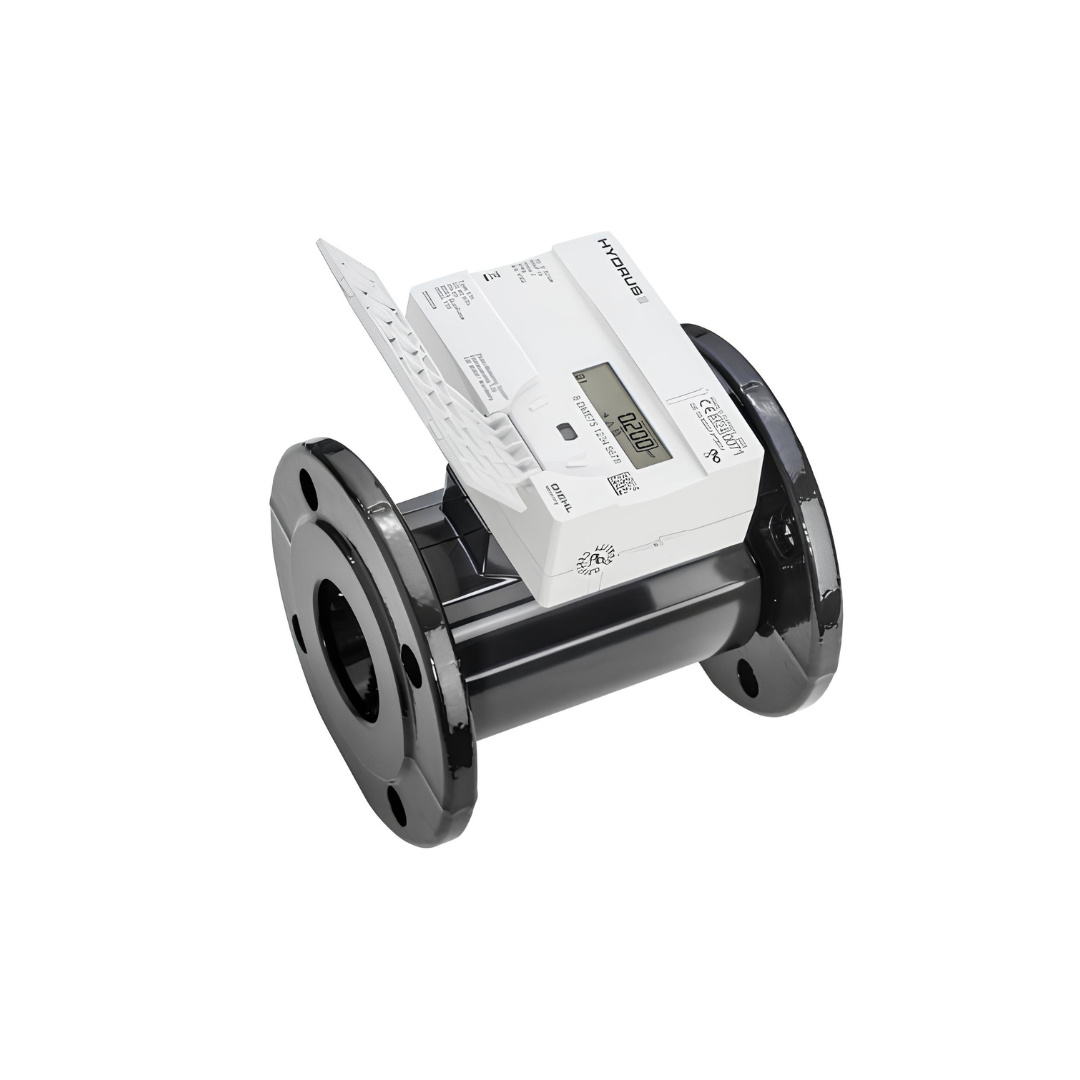

Hydrus 2 - Ultrasonic Meter

Available sizes

DN15 (1/2")
DN20 (3/4")
DN25 (1")
DN40 (1-1/2")
DN50 (2")
DN80 (3")
DN100 (4")
DN150 (6")
DN200 (8")

Description

HYDRUS 2 is a static meter that operates using ultrasonic measurement technology. This technology enables accurate calculation of hot and cold water consumption with long-term stability and eliminates measurement deviations caused by sand, suspended particles, or air bubbles. In addition, it does not require any grounding.

Developed within the framework of the MID, it complies with European regulations and has health certificates of conformity (ACS, WRAS, BELGAQUA, DM174 and others).

The meter is also designed for hot and cold water. The integrated communication function allows data to be supplied to the meter via mobile reading (walk-by/drive-by/passive drive-by) or fixed network (update without on-site configuration). HYDRUS 2.0 BULK offers a wide variety of connectivity supporting different IZAR reading modes. Therefore, a complete Diehl Metering measurement solution is available to meet your needs.

Main Features

DN 50 to 200
MID approval up to R=1000
IP 68
OMS radio, M-Bus/Pulse x2 with cable, OMS radio/L-Bus/Pulse, Pulse x2, Radio remote control with IZAR BE PULSE
Display with symbols and error codes
Self-checking function
Battery life up to 16 years
U0/D0, no straight pipe runs required

Homologation (DN50-200)

Homologation: MID DE-19-MI001-PTB011 | UK/0126/0326
Dynamic Range: Q3/Q1: Up to R = 1000
Standards: ISO 4064 | EN 14154 | OIML R49
Sanitary Compliance: AoC DEU, ACS, WRAS

Meter body variants:

Cold water meters come with an epoxy coated cast iron body as standard. Short ISO length variants can optionally be manufactured with a stainless steel body.

Long length ISO meters with diameters up to DN 100 can optionally come with rotating flanges.

Hot water meters are always supplied with a stainless steel body (EN 1.4408, AISI 316).
