Auriga - Single Jet Meter

Available sizes

• DN15 (1/2")
• DN20 (3/4")
• DN25 (1")
• DN40 (1-1/2")

Description

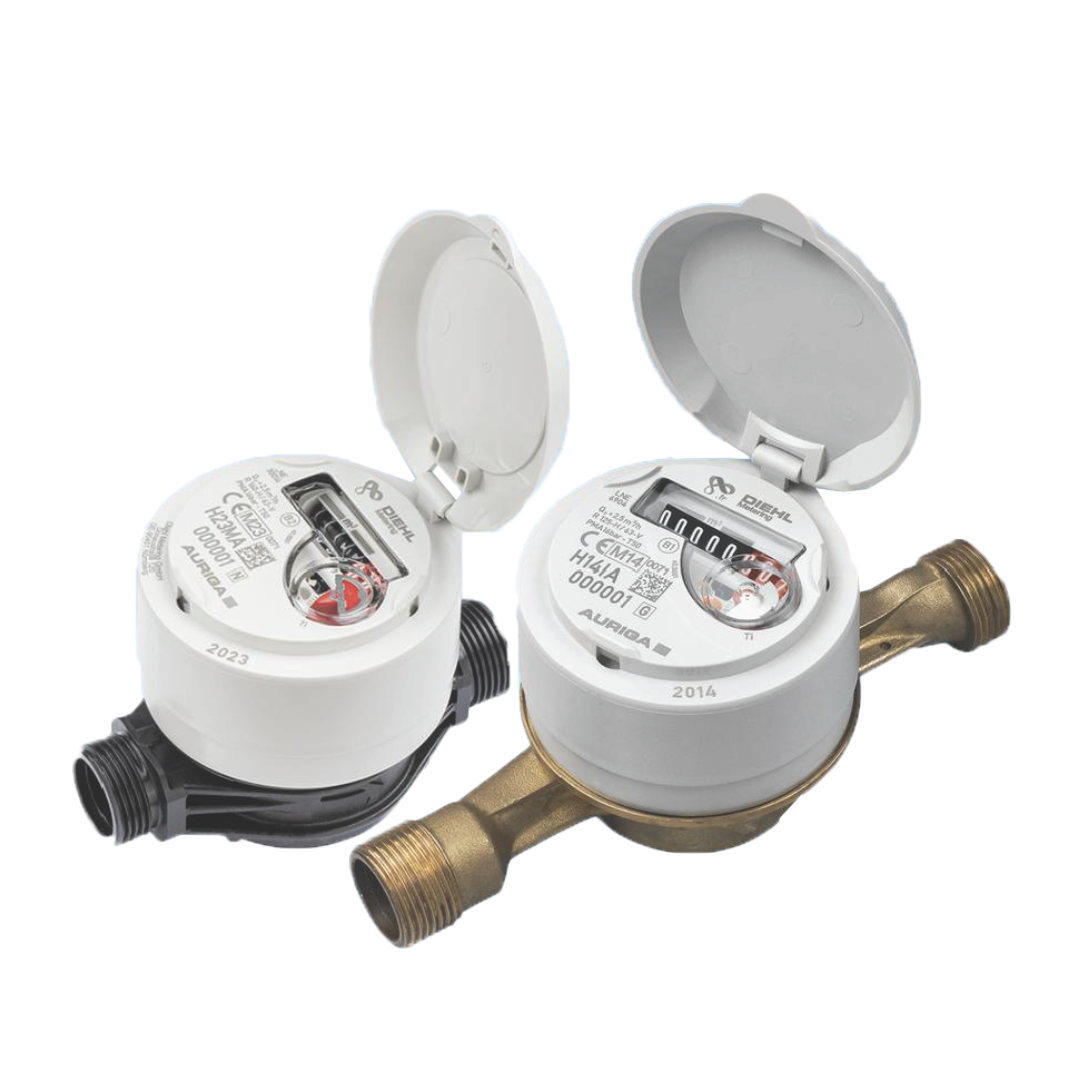

The AURIGA is a single jet meter designed for the mainstream market. Robust, it is particularly suitable for demanding installation conditions and sediment-laden waters.

In compliance with MID certification, the AURIGA complies with European standards and has health conformity certificates.

Modular, the AURIGA can be equipped at any time with a module from the IZAR range that turns it into a communicating meter ready for reading on a mobile network (walk-by, drive-by, passive drive-by) or fixed (radio/cable).

Main Features

• DN15/20
• Q3=2.5m3/h (DN15) / Q3=4m3/h (DN20)
• MID / OIML approvals up to R=160H and R=63V
• Starting flow: 3 l/h (DN15) / 8 l/h (DN20)
• Brass or composite body
• High resistance to demanding water conditions (sand, iron filings)
• Compact and modular

Homologation (Auriga DN15/20)

• Homologation: MID: LNE-30014 | Type B2
• Standards: ISO 4064-1-2014 | OIML R49-1-2013
• Health Compliance: ACS | AoC DEU | Belgaqua | KIWA | OTH | PZH

Options:

• Pair of fittings
• Non-return valve
